Line Chart 2

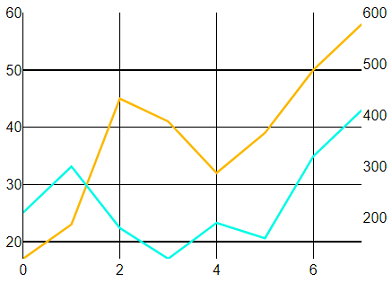

Qubes 9.0 Line chart 2 graphic component.

Properties

Value

(Qubes 10.0)
Returns a String which is an encapsulated array of JSON Object with the data of the last position.
Each JSON contains :

• curveColor: String, color of the curve;
• pointIndex: Integer, index of the value starting from 0;
• seriesIndex: Integer, index of the series starting from 0;
• seriesName: String, name of the series;
• xValue: Float or String, x-axis value of the point;
• yValue: Float, y-axis value the point;

Remarks

If Legend=auto has been defined, the graphic component will contain its legend inside the cell.
In that case, the position of the legend inside the graph is defined by the cell alignment.

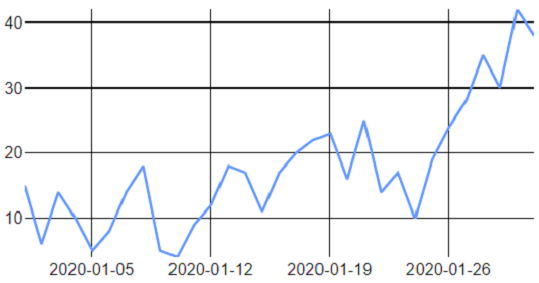

Date values must be among the following formats : Epoch Date Time (see Date/Time), ISO 8601 or Unix Time Stamp.

For AxisXMax, AxisXMin, AxisYMax and AxisYMin: if the axis manipulate date-type data, values must be in Unix Time Stamp format (see TimeSeries example for more information).

For Y axis which scale are set to logarithm, AxisYMax and AxisYMin will be interpretated as log₁₀(value) (value must be positive).

You can't use a date-type date for both X and Y axis.

To use Unix Time Stamp with milliseconds (that can be obtained with UnixTimeMsec), your value needs to be decimal where the decimals are the milliseconds of your value. (For example : UnixTimeMsec() which returns 1632150863281 has to be 1632150863.281 for the component).

If the graph is located inside layers whose Visible property is dynamic, it is recommended to set the graph's Enabled to false to avoid undesired behaviour with mouse events.

The date displayed on the axis are user's locale equivalent.

It is possible to zoom in on the graph. To do that, simply select the area on which you want to zoom. To revert it to its original size, click anywhere in the graph.

The only supported fonts currently are : "Arial", "Balto", "Courier New", "Droid Sans", "Droid Serif", "Droid Sans Mono", "Gravitas One", "Old Standard TT", "Open Sans", "Overpass", "PT Sans Narrow", "Raleway", "Times New Roman". Any other font applied to this component will be interpreted as "Times New Roman".

This component does not require Internet access, but does need a browser that supports HTML5 Canvas. In practice, all modern browsers but Internet Explorer 8 and below support it.

Examples

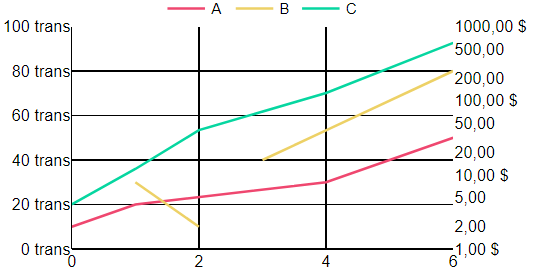

The following settings were defined to generate the above graph:

• To indicate that there are three series:

SeriesNames=List('A', 'B', 'C')

• To indicate the vertical axes to which the three series are attached:

SeriesAxis=List('left', 'left', 'right-log')

• To define the same minimum for both the left and right axes:

AxisYMin=0

• To define different maximums for the left and right axes:

AxisYMax=List(100, 3)

• To define the display formats for the left and right axes:

AxisYFormat=List('%.0f trans', '%.2f $')

• The component was left to manage the x-axis, the series colors and its style:

AxisXMin=auto
AxisXMax=auto
AxisXFormat=auto
SeriesColors=auto
Style=''

• The component was left to format the legend, but the text is centered in the cell, so the legend is on the top of the component:

Legend=auto

• The series data were then defined:

'''Note that the three series' lists of coordinates are separated by a "-".
Also note that there is a break in the second series, because of the empty point ("", "").
Lastly, note that, in this case, a single list could also have been written, instead of a list of lists.
But, in general, each series' point coordinates are provided by separate input data or named ranges.

Data=List(List('0', '10', '1', '20', '4', '30', '6', '50'),
       '-', List('1', '30', '2', '10', '', '', '3', '40', '6', '80'),
       '-', List('0', '4', '1', '12', '2', '40', '4', '127', '6', '600')
     )
